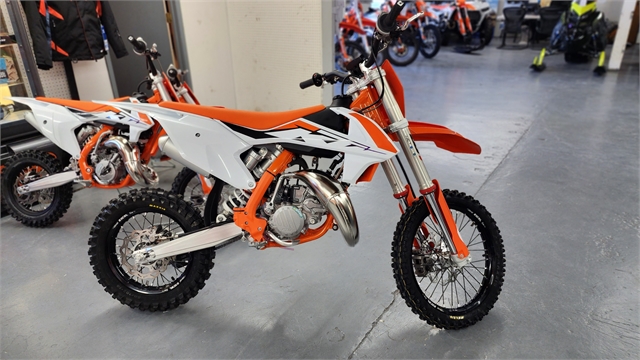

2023 KTM 85 SX 17/14

Stock #12223
MSRP: $6,549 USD
Check Availability Hi, my name is and I'm interested in this 2023 KTM SX 85 17/14 . I'm in the area and you can reach me at or on my phone at .




If you're reading this, then it is safe to say things have become serious. The 2023 KTM 85 SX is the first real step into the big leagues. Lightweight, powerful and reliable, the KTM 85 SX boasts real big bike components in scaled-down 85 cc geometry, providing the ultimate kickstart to any young racing career.

  • Status:
    New
  • Vehicle:
    2023 KTM 85 SX 17/14
  • VIN:
    VBKMRC239PM056567
  • Model Number:
    F6001W8
  • Stock Number:
    12223
  • Title:
    Clear
  • Location:
    Cascade Motorsports
  • Warranty:
    Manufacturer's

BRAKES

  • Brake Brand Name:
    Formula
  • Front Brake Diameter (in):
    9.4
  • Front Brake Diameter (mm):
    240
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    1.85
  • Bore (mm):
    47
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    38
  • Carburetor:
    Yes
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    84.9
  • Displacement (ci):
    5.2
  • Engine Stroke:
    2-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas / Oil Premix
  • Number Of Carburetors:
    1
  • Starter:
    Kick
  • Stroke (in):
    1.93
  • Stroke (mm):
    49
  • Valve Configuration:
    Reed Valve

EXTERIOR

  • Body Material:
    Plastic
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Chromium Molybdenum
  • Radiator Cover:
    Yes
  • Stand Type:
    Kick

SEATS

  • Adjustable:
    Yes
  • Number Of Seats:
    1
  • Seat Height (in):
    33.5
  • Seat Height (mm):
    850
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    WP XACT
  • Front Suspension Size (in):
    1.7
  • Front Suspension Size (mm):
    43
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    10.9
  • Front Travel (mm):
    278
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    WP XACT
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    12
  • Rear Travel (mm):
    305

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    67
  • Dry Weight (lbs):
    147.7
  • Engine Displacement to Weight (cc):
    0.57
  • Fuel Capacity (gal):
    1.4
  • Fuel Capacity (l):
    5.2
  • Ground Clearance (in):
    13.2
  • Ground Clearance (mm):
    336
  • GVWR (kgs):
    75
  • GVWR (lbs):
    165
  • Wheelbase (in):
    50.8
  • Wheelbase (mm):
    1290

TRANSMISSION

  • Final Drive Ratio:
    3.29
  • Gear Ratio (1):
    2.64
  • Gear Ratio (2):
    2
  • Gear Ratio (3):
    1.63
  • Gear Ratio (4):
    1.37
  • Gear Ratio (5):
    1.19
  • Gear Ratio (6):
    1.05
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® MX-ST 70/100 R17 40M
  • Front Tire Aspect Ratio:
    100
  • Front Tire Speed Rating:
    M
  • Front Tire Width:
    70
  • Front Wheel Diameter:
    17
  • Front Wheel Width (in):
    1.4
  • Rear Tire (Full Spec):
    Maxxis® MX-ST 90/100 R14 49M
  • Rear Tire Aspect Ratio:
    100
  • Rear Tire Speed Rating:
    M
  • Rear Tire Width:
    90
  • Rear Wheel Diameter:
    14
  • Rear Wheel Width (in):
    1.6
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
