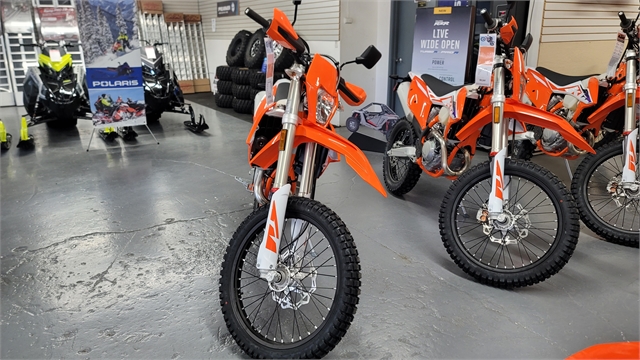

2023 KTM 500 EXC-F

$1,500 Parts Credit OR 1.99% APR!

Stock #12066
Payments as low as: $205/month *
MSRP: $12,549 USD

284 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 KTM EXC 500 F - $1,500 Parts Credit OR 1.99% APR! . I'm in the area and you can reach me at or on my phone at .




Think of the 2023 KTM 500 EXC-F as a sledgehammer. Hard-hitting, effective, and utterly devastating. But, thanks to a nimble chassis and its even more compact high-tech engine, this large-displacement power machine is surprisingly light and rideable. As a result, this 510 cc SOHC single-cylinder powerhouse has an incredible power-to-weight ratio and provides nothing less than the most dynamic, and exciting option for weekend outrides, enduro competition, or rally event.

  • Status:
    New
  • Vehicle:
    2023 KTM 500 EXC-F
  • VIN:
    VBKEXK400PM449509
  • Model Number:
    F8575W9
  • Stock Number:
    12066
  • Title:
    Clear
  • Location:
    Cascade Motorsports
  • Warranty:
    Manufacturer's

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Diameter (in):
    10.2
  • Front Brake Diameter (mm):
    260
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3.74
  • Bore (mm):
    95
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    12.8
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    510.9
  • Displacement (ci):
    31.2
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    42
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.83
  • Stroke (mm):
    72
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Body Material:
    Plastic
  • Chain Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Chromium Molybdenum
  • Hand Guards:
    Yes
  • Radiator Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    37.8
  • Seat Height (mm):
    960
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    WP XPLOR
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    48
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    11.8
  • Front Travel (mm):
    300
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    WP XPLOR
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    12.2
  • Rear Travel (mm):
    310

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    109
  • Dry Weight (lbs):
    240.3
  • Engine Displacement to Weight (cc):
    2.12
  • Fuel Capacity (gal):
    2.3
  • Fuel Capacity (l):
    8.5
  • Ground Clearance (in):
    14
  • Ground Clearance (mm):
    355
  • Wheelbase (in):
    58.3
  • Wheelbase (mm):
    1482

TRANSMISSION

  • Final Drive Ratio:
    3.57
  • Number Of Speeds:
    6
  • Overdrive:
    Yes
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Brand:
    Pankl
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Continental TKC 80 90/90 R21 54S
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    S
  • Front Tire Width:
    90
  • Front Wheel Diameter:
    21
  • Front Wheel Width (in):
    1.6
  • Rear Tire (Full Spec):
    Continental TKC 80 120/90 R18 65R
  • Rear Tire Aspect Ratio:
    90
  • Rear Tire Speed Rating:
    R
  • Rear Tire Width:
    120
  • Rear Wheel Diameter:
    18
  • Rear Wheel Width (in):
    2.15
  • Tire Brand:
    Continental
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
