2023 KTM 50 SX

Stock #12179
MSRP: $4,699 USD
Check Availability Hi, my name is and I'm interested in this 2023 KTM SX 50 . I'm in the area and you can reach me at or on my phone at .

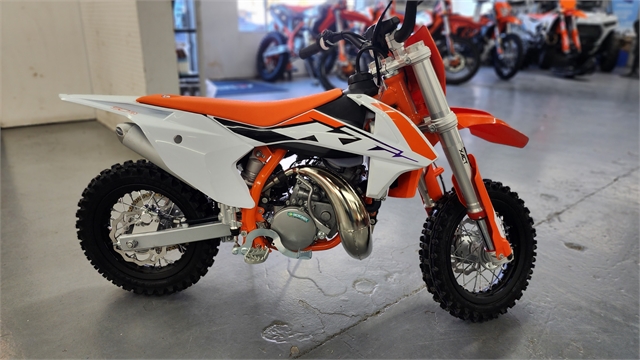

The 2023 KTM 50 SX is a true READY TO RACE motocross machine. It is a genuine dirt bike that, like its bigger siblings, is produced with top-quality components, real race-bred input, and thoughtful development. It goes without saying that the KTM 50 SX is the only choice when stepping into the world of MX.

  • PHO_BIKE_90_LI_SX50-MY23-90-left_#SALL_#AEPI_#V1.png




  • Status:
    New
  • Vehicle:
    2023 KTM 50 SX
  • VIN:
    VBKMRA236PM053663
  • Model Number:
    F6001W4
  • Stock Number:
    12179
  • Title:
    Clear
  • Location:
    Cascade Motorsports
  • Warranty:
    Manufacturer's

BRAKES

  • Brake Brand Name:
    Formula
  • Front Brake Diameter (in):
    6.3
  • Front Brake Diameter (mm):
    160
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    6.3
  • Rear Brake Diameter (mm):
    160
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    1.56
  • Bore (mm):
    39.5
  • Carburetion Brand:
    Dell'Orto
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    19
  • Carburetor:
    Yes
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    49
  • Displacement (ci):
    3
  • Engine Stroke:
    2-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas / Oil Premix
  • Number Of Carburetors:
    1
  • Speed Governor:
    Yes
  • Starter:
    Kick
  • Stroke (in):
    1.57
  • Stroke (mm):
    40
  • Valve Configuration:
    Reed Valve

EXTERIOR

  • Body Material:
    Plastic
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Chromium Molybdenum
  • Stand Type:
    Kick

SEATS

  • Adjustable:
    Yes
  • Number Of Seats:
    1
  • Seat Height (in):
    26.2
  • Seat Height (mm):
    665
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    WP XACT
  • Front Suspension Size (in):
    1.3
  • Front Suspension Size (mm):
    35
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    8.1
  • Front Travel (mm):
    205
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    WP XACT
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    7.3
  • Rear Travel (mm):
    185

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    41.5
  • Dry Weight (lbs):
    91.5
  • Engine Displacement to Weight (cc):
    0.54
  • Fuel Capacity (gal):
    0.6
  • Fuel Capacity (l):
    2.3
  • Ground Clearance (in):
    9.9
  • Ground Clearance (mm):
    252
  • Wheelbase (in):
    40.6
  • Wheelbase (mm):
    1032

TRANSMISSION

  • Final Drive Ratio:
    3.64
  • Number Of Speeds:
    1
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Automatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® MX-ST 2.50 X 12 42J
  • Front Tire Speed Rating:
    J
  • Front Wheel Diameter:
    12
  • Front Wheel Width (in):
    2.5
  • Rear Tire (Full Spec):
    Maxxis® MX-ST 2.75 X 10 38J
  • Rear Tire Speed Rating:
    J
  • Rear Wheel Diameter:
    10
  • Rear Wheel Width (in):
    2.75
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum

Our Location

Cascade Motorsports
20445 Cady Way
Bend, OR 97701

Unit Disclaimer:

MSRP excludes applicable taxes title and licensing, dealer set up, destination, and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Monthly payment based on 20% down at 72 months on approved credit.
